Architecture

Diagrams

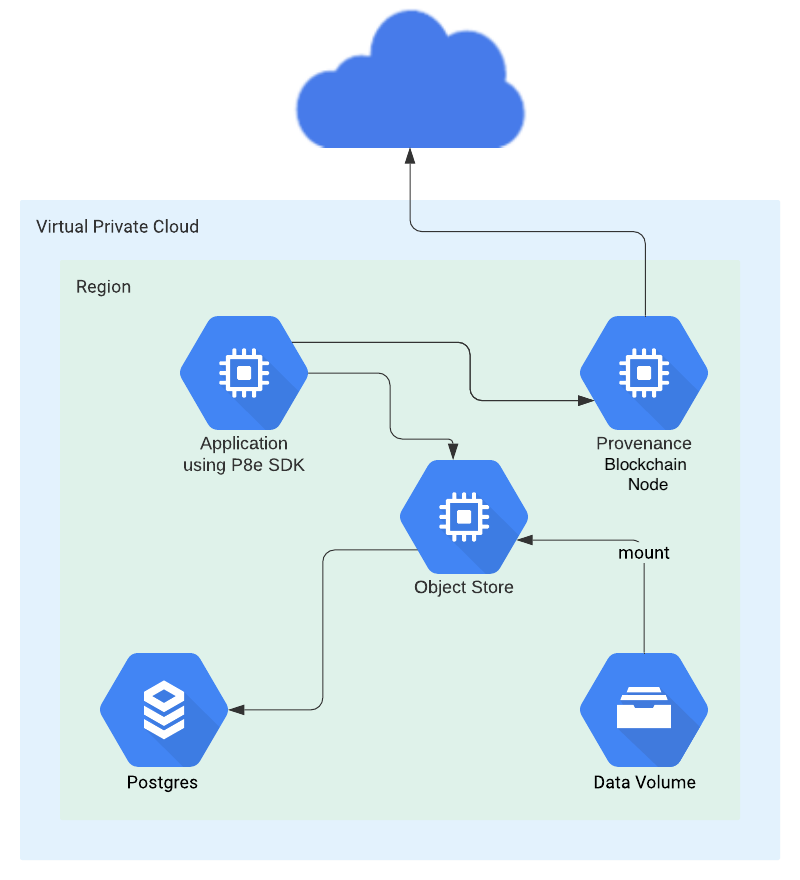

p8e Execution Environment

Port Mappings

Encrypted Object Store does not currently contain any authentication mechanism. If you have a desire to publicly expose your instance, authentication and authorization should be provided externally, for instance with an API gateway.
Default port mappings (NOTE: these are all configurable and can be changed):
  • Encrypted Object Store
    • ingress - tcp:80
  • Provenance Blockchain Node
    • internet egress - tcp:26656
    • ingress - tcp:26656-26657, tcp:9090, tcp:1317

Logical Description

Encrypted Object Store (EOS)

Object store can run in a few different configurations based on the needs of your p8e environment.
  • No external multi-parties - If your p8e environment will strictly be handling single party contracts, or multi-party contracts where all parties are within your p8e execution environment, a single, privately addressable object store node may be used. The replication feature can be disabled.
  • External multi-parties - If your p8e execution environment needs to execute multi-party contracts with some parties that exist outside of your EOS, the following are required:
    • An EOS for your own p8e execution environment
    • Replication feature enabled

Provenance Blockchain Node

A Provenance Blockchain node provides your P8e execution environment with a means to read events and send transactions to the distributed Provenance Blockchain network. See here for setup.

Postgres 13

EOS requires postgres for persisting data. The cpu and memory requirements will largely depend on the amount of data EOS environment will support.
